Gain and tone where you can reach them.

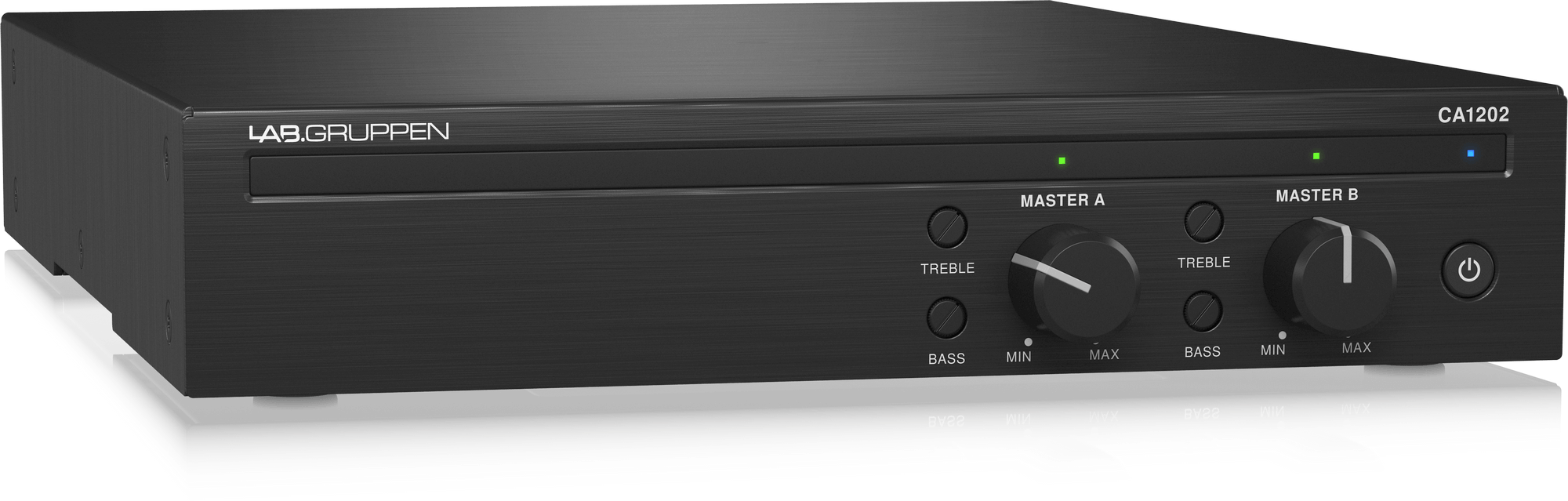

Music in a shared space has to suit the room and the hour. On the CA1202, gain and tone sit on the front panel. Bass and treble each move ±10 dB, at 100 Hz and at 10 kHz.
Two channels, kept apart
Input A feeds Output A only, and Input B feeds Output B. For stereo, connect the left signal to Input A and the right signal to Input B. Each input takes a balanced Euroblock source or a stereo RCA source summed to mono.
Match the output to your speakers
The Config switches select 4 Ω, 8 Ω, 70 V or 100 V. The mode sets both the maximum output voltage and the gain. The 8 Ω setting suits a pair of 16 Ω speakers or a single 8 Ω speaker.
Status at a glance
The power LED shows blue when on, red in forced standby and yellow in sleep. A green LED shows signal. A red LED shows input clip or output limit.
