Background music in each zone, paging in both.

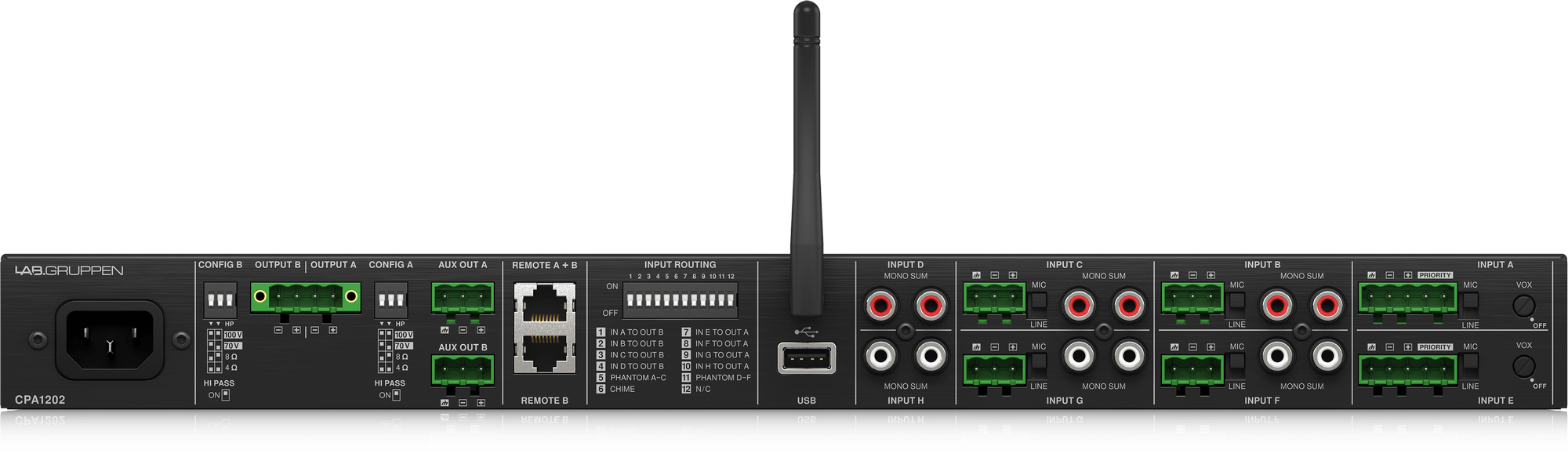

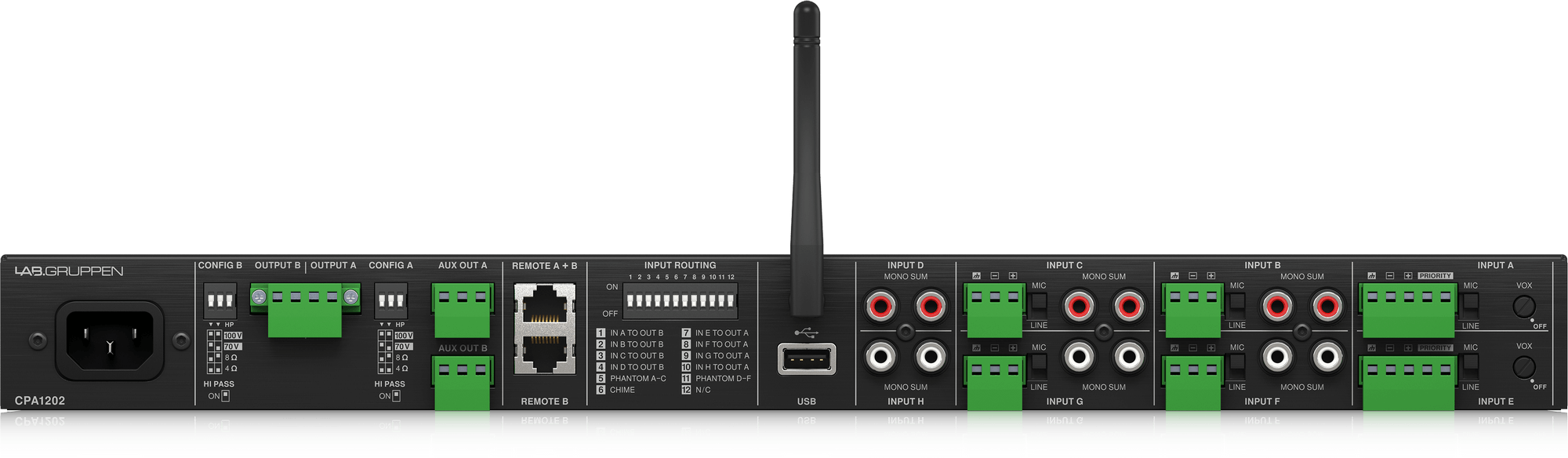

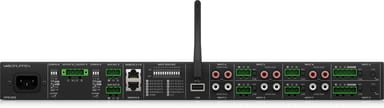

A building rarely wants the same sound in every room. By default, inputs A to D feed Output A and inputs E to H feed Output B. A dipswitch also routes an input to the other output. So paging or background music reaches both zones, while other sources stay local.
Announcements that cut in

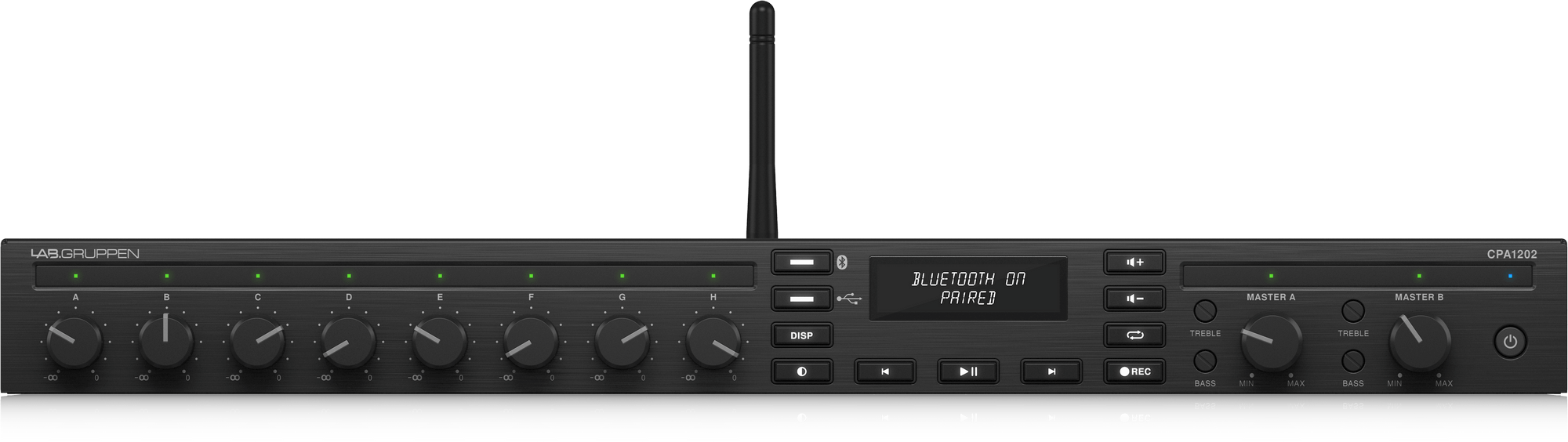

Inputs A and B can mute all other channels when priority is active. A closure switch on a paging mic triggers it, or a signal above the threshold set with the VOX knob. On this model, ducking affects the other sources routed to the same output. A chime can sound each time priority muting starts.
Bring in music, match your speakers

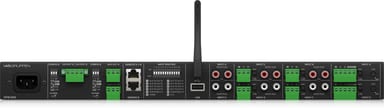

Stream over Bluetooth or play audio files from a USB flash drive. Euroblock inputs take balanced mic or line sources, with 48 V phantom power. The Config dipswitches match it to the speakers: 100 V or 70 V lines, or 8 Ω or 4 Ω.
