Announcements that cut through the music.
Music plays in the background until someone needs to speak. On the CM41, Input A has priority. When the Priority function is activated, it mutes all other channels.
Two ways to take the floor
Short the 2 Priority pins with a closure switch, often found on paging mics. Or let the voice do it: the VOX knob sets the input level that engages ducking. Set it so clear speech exceeds the threshold but ambient noise is ignored.
Sources in, one mix out

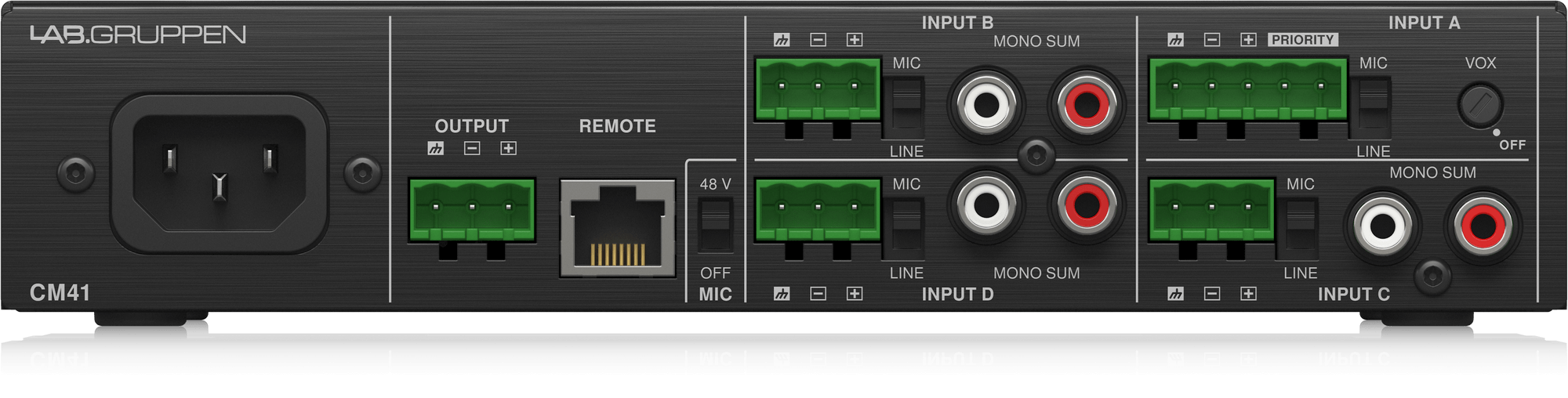

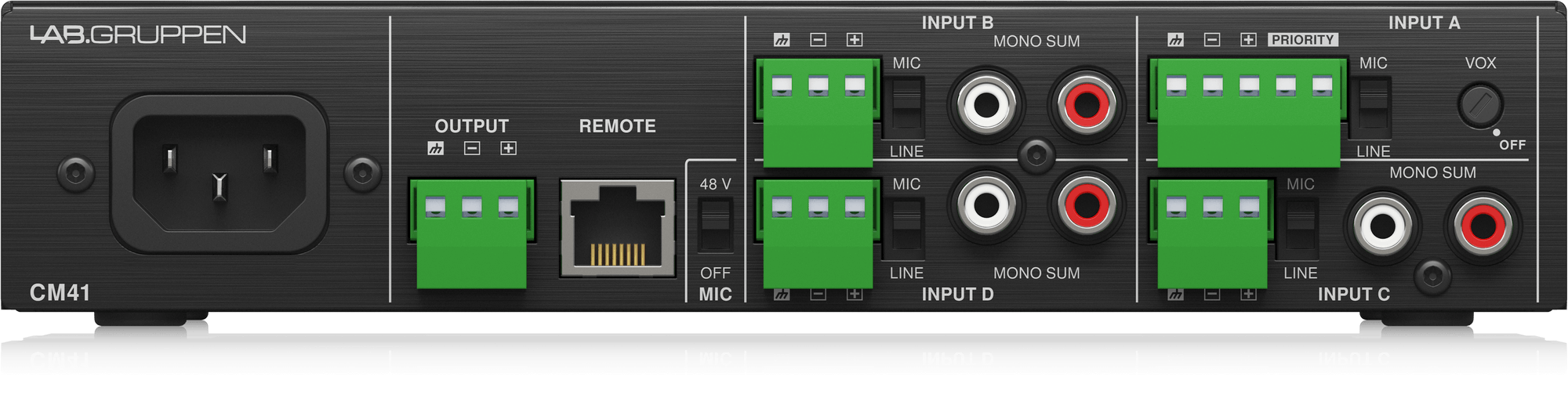

Channels B, C and D each take a 3-pin Euroblock or a stereo RCA, summed to mono. Use one or the other on each input, not both. The mixed audio goes to a power amplifier from a 3-pin Euroblock output.

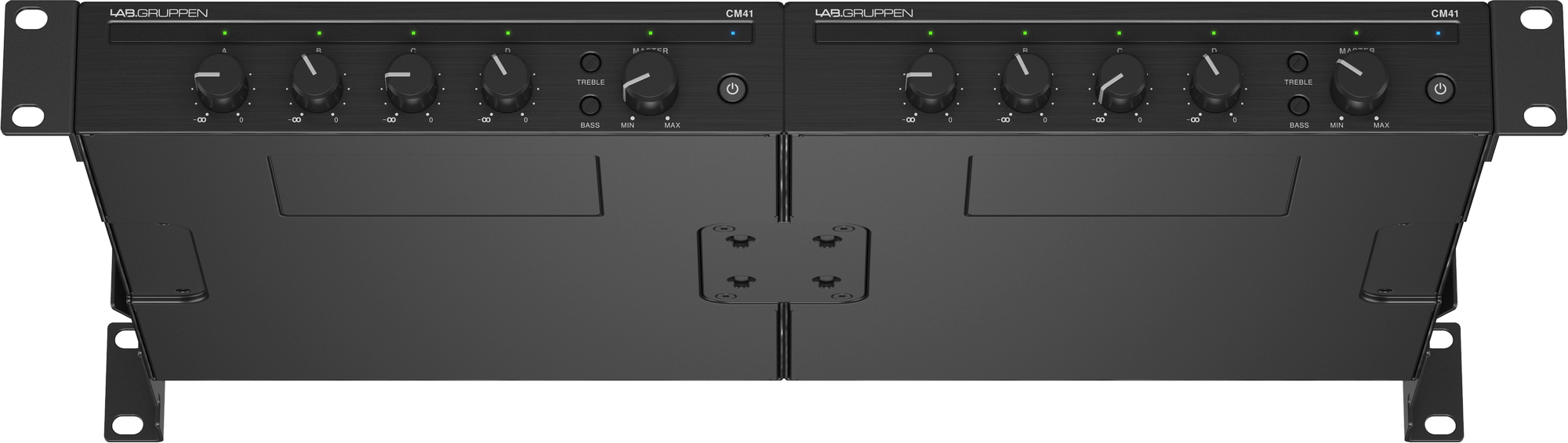

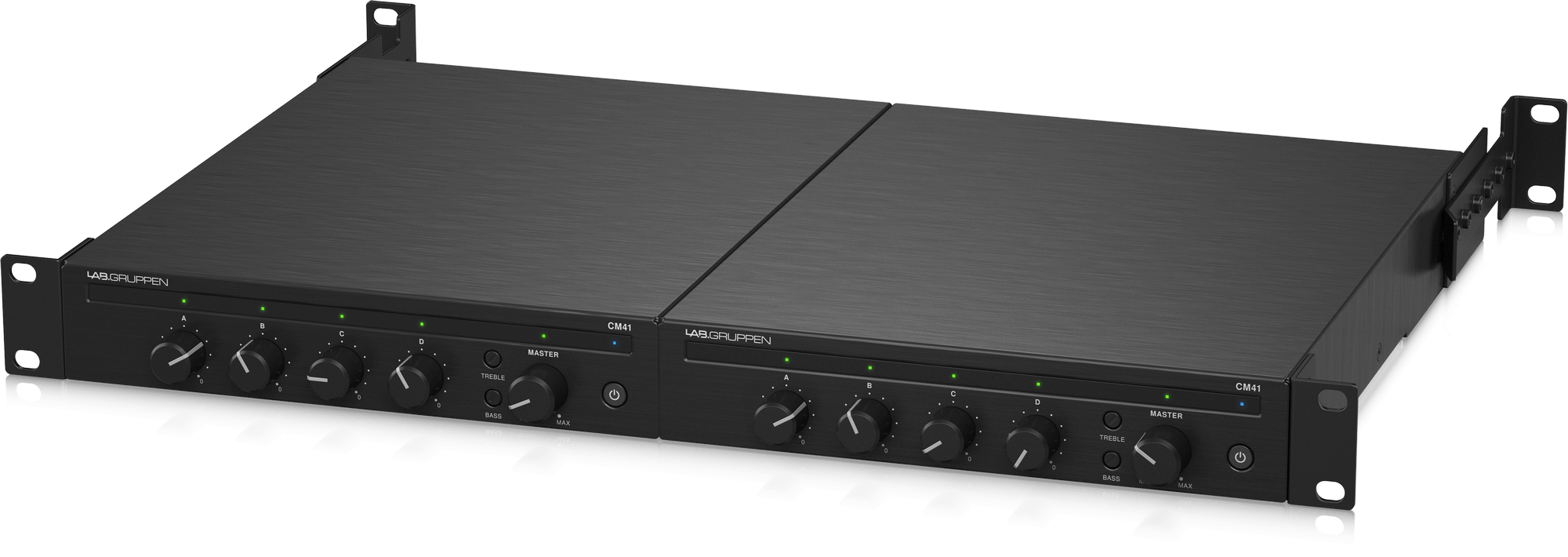

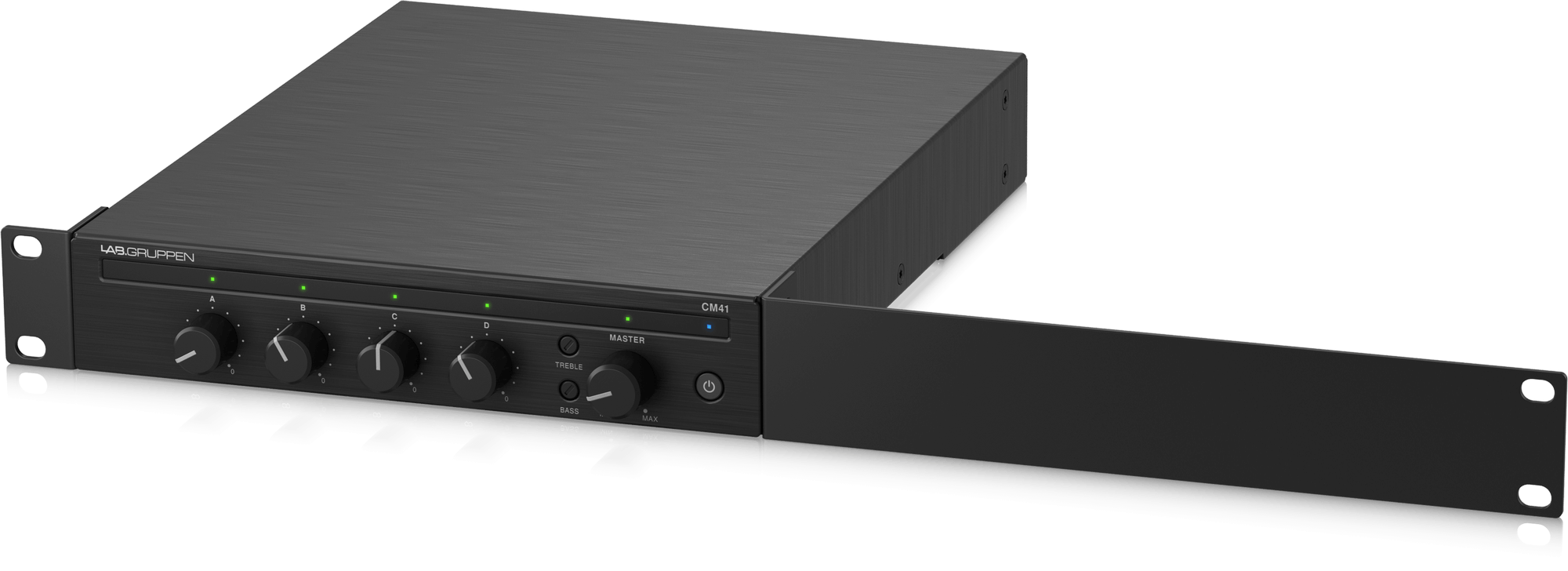

Small enough to pair up
Two CM41 units fit together in one rack space. Wall controllers from the CRC-V series, available as separate accessories, connect to the RJ45 remote port.
